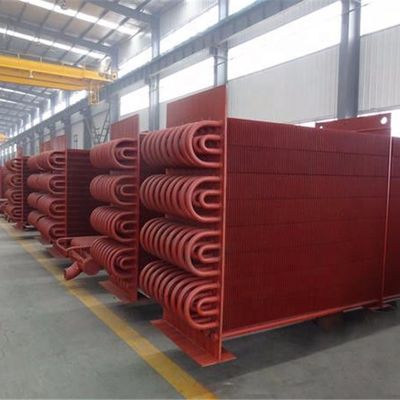

Boiler Economizer Heat Exchanger Tube with Max. 60t/h Capacity 1 Year Warranty EN Standard
| उत्पत्ति के प्लेस | जियांगसु, चीन |
|---|---|
| ब्रांड नाम | HD Boiler |
| प्रमाणन | L/C, T/T, Western Union, D/P, MoneyGram |
| न्यूनतम आदेश मात्रा | 1 सेट |
| मूल्य | $2,300-2,685 / set |
निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
व्हाट्सएप:0086 18588475571
वीचैट: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xउत्पाद विवरण
| सामग्री | स्टेनलेस स्टील या कार्बन स्टील | प्रकार | प्राकृतिक परिसंचरण |
|---|---|---|---|
| प्रयोग | बिजली संयंत्र | संरचना | आग की नली |
| दबाव | उच्च दबाव | भाप उत्पादन | अधिकतम 60 टन/घंटा |
| शैली | खड़ा | ईंधन | गैस से चलने वाले |
| उत्पादन | गर्म पानी | सामग्री मानक | एएसटीएम, एन या आईएसओ आदि। |
| भार वर्ग | न्यूनतम: 10 टन, अधिकतम: 1000 टन | गलाने की प्रक्रिया | ईएफ+एलएफ + वीडी |
| प्रक्रिया | सामग्री-> इंगोट-> हॉट/कोल्ड-रोलिंग-> हीट ट्रीटमेंट-> इंस्पेक्शन | यूटी मानक | ASTM A388 या EN10228 |
| उष्मा उपचार | सामान्यीकरण+ टेम्परिंग | ||
| प्रमुखता देना | Max. 60t/h Boiler Economizer,1 Year Warranty Heat Exchanger Tube,EN Standard Economiser |
||
उत्पाद विवरण
Boiler Economizer Carbon Steel Stainless Steel Heat Exchanger Tube in ASME/EN/GB Standard
Product Description
Boiler Pressure Part Boiler Economizer Of Carbon Steel for Power Station and Industry
Summary
The boiler steam generation process involves three key stages: feed water preheating, evaporation, and superheating, each occurring on distinct heating surfaces. The boiler economizer serves as the initial stage, preheating feed water before it enters the evaporation system. As the lowest-temperature component in the boiler's steam-water circuit, it handles monophasic water in non-boiling conditions.
Key Functions
- Fuel Efficiency: Positioned at the boiler's rear section, economizers recover waste heat from flue gases, reducing exhaust temperatures and improving overall boiler efficiency while decreasing fuel consumption.
- Steam Drum Protection: Preheated feed water reduces thermal stress on steam drum walls by minimizing temperature differentials, thereby extending equipment service life.
- Cost Reduction: By replacing high-temperature water wall panels with more economical economizer components, boiler manufacturing costs are significantly reduced.
Technical Specifications
| Description | Boiler economizer |
|---|---|
| Material | Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material Standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight | Min: 10 ton Max.:1000 ton |
| Smelting Process | EF+LF + VD |
| Manufacturing Process | Material→Ingot→Hot/Cold-Rolling→Heat treatment (Normalizing+ tempering)→Inspection→rough machining→UT→2nd Heat treatment→finishing machining→Inspection |
| UT Standard | ASTM A388 or EN10228, etc |
Quality Control
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam) to ensure complete boiler quality
- Hydraulic test report to verify standard working pressure and safety compliance
